Solutions

Data Center Connectivity

400G and 800G ZR and ZR+ pluggable transceivers are transforming data center connectivity in the AI area by providing high-speed, low power and cost-effective solutions for data center interconnects (DCIs). These transceivers leverage coherent optical technology to deliver robust performance over extended distances and seamless interoperability between vendors, making them ideal for modern data centers that require efficient and reliable data transfer.

ZR | ZR+ Family
LR Family
Learn more
  • ZR | ZR+ Family
    800G QSFP-DD ZR 0 dBm

    InP engine

    Reach: 40Km unamplified, 120Km amplified

    Client 8x100GbE | 4x200GE | 1x800GbE

    0-75℃ operating temperature

    Compliant with OIF-800G ZR MSA standard

    800G QSFP-DD ZR+ 0 dBm

    InP engine

    Reach: 120-400 Km+

    Client 100GbE - 400GbE (multirate)

    0-75℃ operating temperature

    Compliant with 800G ZR+ MSA standard

    400G QSFP-DD ZR

    Silicon Photonics engine

    Reach: 40Km unamplified, 120Km amplified

    Client 400GbE

    0-70℃ operating temperature

    Compliant with OIF-400ZR-01.0 standard

    400G QSFP-DD ZR+

    Silicon Photonics engine

    Reach: 120-4000Km+

    Client 100GbE - 400GbE (multirate)

    0-70℃ operating temperature

    Compliant with Open ZR+ MSA

    400G QSFP-DD ZR+ 0 dBm

    InP engine

    Reach: 120-400 Km+

    Client 100GbE - 400GbE (multirate)

    0-75℃ operating temperature

    Compliant with Open ZR+ MSA standard

  • LR Family

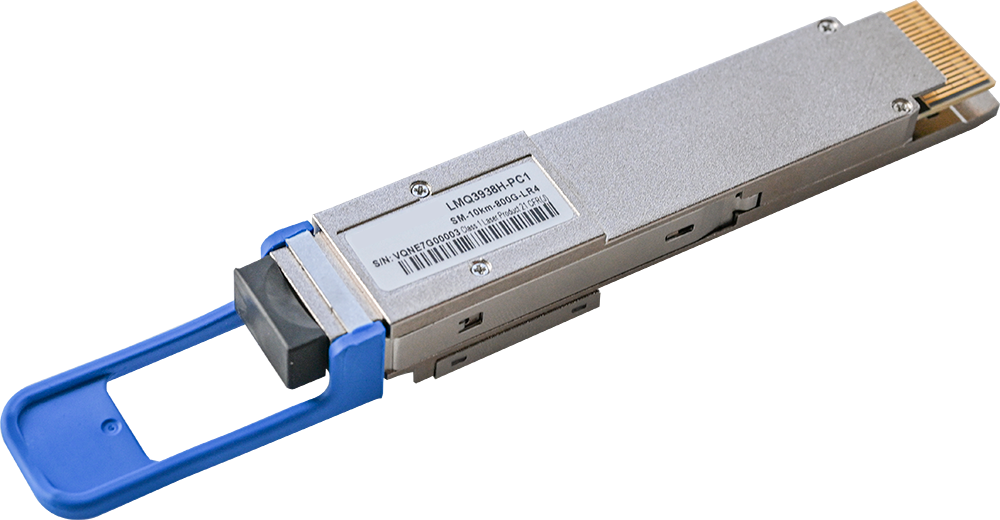

    800G QSFP-DD LR4

    Reach: 10 Km

    Client: 8x100GbE

    0-70℃ operating temperature

    Compliant with IEEE_Std_802.3dj and CMIS 5.0

    Hermetic (!)

    400G QSFP-DD FR4/LR4

    Reach: 10 Km

    Client: 4x100GbE and 4xOTU4

    0-70℃ operating temperature

    Compliant with IEEE_Std_802.3cu: 400GBASE-LR4-6, 100G Lambda MSA: 400G-LR4-10, CMIS 4.0 and ITU-T grid

    Hermetic (!)

    200G QSFP-DD 2xLR4 single and dual rate

    InP engine

    Reach: 10 Km

    Client: 8 interfaces at 25.78Gb/s and 27.9Gb/s

    0-70℃ operating temperature

    Compliant with IEEE_Std_802.3ba, CMIS 4.0 and ITU-T grid

    100G QSFP28 LR1 Dual rate

    InP engine

    Reach: 10 Km

    Client: 100GbE and OTU4

    0-70℃ operating temperature

    Compliant with IEEE_Std_802.3cu, SFF-8636

    100G QSFP28 LR1 Single rate

    InP engine

    Reach: 10 Km

    Client: 100GbE

    Available in C-temp (0-70℃) and I-Temp(-40-85℃) for operating temperature

    Compliant with IEEE_Std_802.3cu, SFF-8636

    100G QSFP28 LR4 Single and Dual rate

    Client: 100GbE (single) and OTU4

    Reach: 10 Km

    0-70℃ operating temperature

    Compliant with IEEE_Std_802.3ba-2010, SFF-8636, ITU-T grid

    Hermetic (!)

    10G SFP+ ER/ZR

    InP engine

    Reach: 40Km(ER) and 80Km (ZR)

    Client 10GbE

    Available in C-temp (0-70℃) and I-Temp(-40-85℃) for operating temperature

    Compliant with IEEE802.3ae 10GBASE-ER, SFF-8431, SFF8472 and OTN（CDR）
